Huawei ONT HG8245H, 1x GPON, WiFi, 4xGE, 2xPOTS, 1x USB
0.00€ (0.00лв.)
Без ДДС: 0.00€ (0.00лв.)

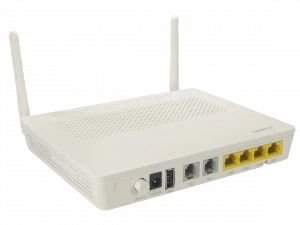

ONT Huawei EchoLife Terminal
Huawei EchoLife HG8245H is a GPON ONT client terminal used in FTTH networks. It has 2 phone sockets (POTS-RJ11), 4 Gigabit Ethernet ports, USB port and one GPON class B+ port. The device can also use wireless transmission using two antennas with 2dBi gain each. When using Wi-Fi it is possible to create multiple SSIDs. The maximum power consumption of HG8245H is only 15.5W.
Features of the HG8245H terminal
- port GPON (class B+)
- 4 Gigabit Ethernet ports (LAN)
- 2 telephone ports (POTS-RJ11)
- Wi-Fi in IEEE 802.11b/g/n standard
- two external antennas with profit 2 dBi each
- USB 2.0 port
- functions Layer 3 and QoS
- energy savings
SPECIFICATION
| Features / filters | |
| Number of LAN ports | 4x 10/100/1000BaseTX (RJ45) |
| PON standard | GPON |
| Wireless network standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, |
| USB port | 1x USB |
| VoIP ports | 2x POTS |
| Technical data | |
| PON | 1 port Class B+ Sensitive reception: -27 dBm Wavelength: US 1310nm, DS 1490nm WBF Flexible mapping between the GEM and TCONT ports G.984.3 Bilateral FEC SR-DBA and NSR-DBA |
| Ethernet | 4 Gigabit ports 1:1 VLAN, N:1 VLAN or VLAN transparent transmission QinQ VLAN MAC address learning |
| POTS | 2 ports Maximum REN: 4 G.711A/u, G.729a/b and G.722 T.30 / T.38 / G.711 fax DTMF Emergency calls (via SIP protocol) |
| USB | 1x USB 2.0 Possibility of creating a network drive based on FTP |
| WLAN | IEEE 802.11 b/g/n 2x2 MIMO Antennas with 2 dBi gain WMM Many SSIDs WPS |
| Dimensions | 176x138.5x28 mm (without antenna) |
| Weight | About 500 g |
| Permissible operating temperature | 0 to 40 degrees C |
| Permissible air humidity | 5%-95% RH non-condensing |
| Power input | 100 - 240 V AC, 50 - 60 Hz |
| System power supply | 11 - 14 V DC, 2 A |
| Static power consumption | 5 W |
| Maximum power consumption | 15,5 W |
| Ports | 2 POTS 4 Gigabit ports of Ethernet USB GPON |
| LEDs | POWER / PON / FATE / LAN / TEL / USB / WLAN / WPS |
| Set composition | The device 12 V, 2 A power supply Ethernet cable |
